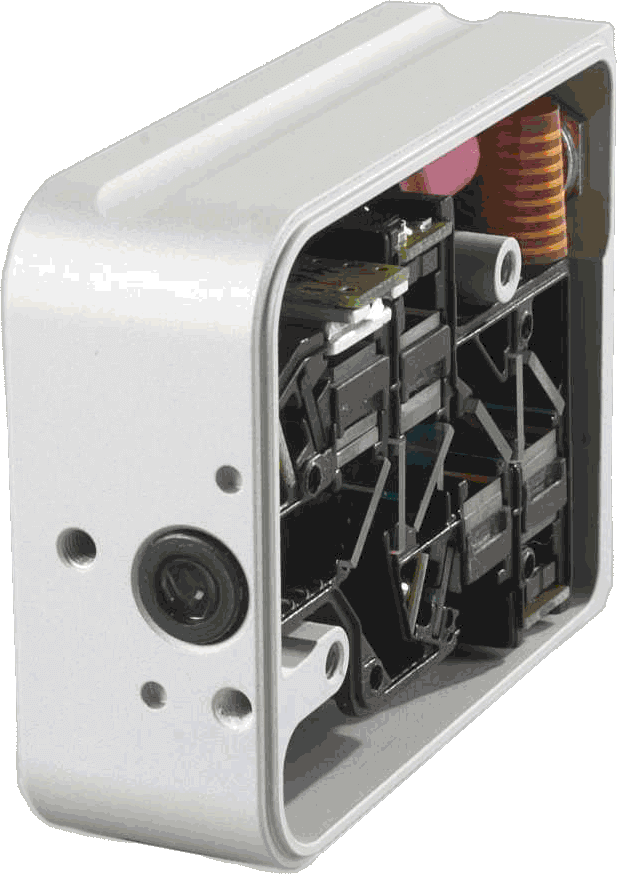

Fluo Sens Integrated

Compact Fluorescence Detector for OEM & Inline Integration

The FluoSens Integrated is your fast-track solution to developing compact, mobile, or inline fluorescence detection systems. Whether you're building handheld diagnostic devices or automating lab workflows, this integrable fluorescence detector delivers high-sensitivity confocal optics in a miniaturized, robust form factor.

Learn more below!

Product Description

The Smart Way to Integrate Fluorescence Detection

Designed for OEMs and system developers, the FluoSens Integrated enables real-time fluorescence measurements on surfaces or in liquids, without contact and even under ambient light. Its confocal optics deliver precise excitation and emission separation, ensuring accurate results even in low-concentration samples.

Thanks to its compact design, it fits seamlessly into portable systems or inline quality control workflows. Calibration and correction data are stored directly on the device and accessible via a simple serial interface (RS232/RS485), supporting plug & play system integration.

The easiest way to develop small and mobile fluorescence detection systems

Our unique fluorescence detector is the perfect solution for integration in compact and mobile fluorescence detection systems or for online measurements in automated processes.

Find out how FluoSens Integrated can fit into your device!

More Details

Key Features

Ultra-compact and lightweight fluorescence detector – ideal for mobile or handheld devices
High sensitivity for low-intensity fluorescence signals – reliable even with minimal sample concentrations
Real-time fluorescence measurement – works on both surfaces and in liquids
Flexible wavelength configuration – adapt to your specific application needs
Robust, ambient-light-compatible performance – thanks to integrated confocal optics
OEM-friendly design – compact form with RS232/RS485 interface for seamless integration
Confocal optical system – ensures precise excitation and emission separation

Main Benefits

Why Choose FluoSens Integrated?

Accelerate Development: Reduce time to market with a pre-validated, OEM-ready solution
Design Freedom: Integrate into handheld, portable, or inline instruments
Low Technical Risk: Proven technology with built-in calibration and diagnostics
Cost-Effective Scaling: Optimized for serial production and long-term stabilityBeispieltext. Klicke, um das Textelement auszuwählen.

Order starter Kit

Watch our explanation video

Technical specifications

Performance

Absolute detection limit	• e.g. @ 470nm excitation and 520nm detection 15 pMol fluorescein-sodium in 0.1 M sodium Hydroxide
Dynamic range	• 3.6 orders of magnitude (0 .. 2500 arb. u.* 1 linear range • Adjustable range via software by factor 10 • Adjustable range via hardware by factor 1000
Noise level	• < 0.2% at max. range
Excitation	• High performance-LED with feedback loop for stabilization
Detection	• High amplification with high signal-to-noise ratio (between 98.5% and 99.95% depending on multiple factors), precision Si-Photodiode
Measurement intervals	• 0.1 seconds to hours • Signal settling time (“On-Delay”): 300ms • Signal fall time (“Off-Delay”): 300ms •Measurement frequency in “scan mode”: 200Hz
Detection area	• 1 mm² to 25 mm² (depends on working distance and used front lens)
Distance (detector/object)	• 6 mm to 18 mm (depends on used front lens)
Available excitation wavelengths†	• 365 nm to 980 nm (two different spectral excitation ranges per detector)
Available detection wavelengths†	• 460 nm to 980 nm (two different spectral detection ranges per detector)

* a.u. = arbitrary unit
† Typical dyes: Alexa Fluor 647, Pacific Blue EGFP, 5-FAM, ROX, HEX, Cy3, Cy5, TAMRA, FITC

Environmental operation conditions

Temperature range	• +10°C to +40°C
Air humidity	• 20% to 70% relative humidity, without condensation
Air pressure	• 300 to 1060 hPa

Mechanics

Housing	• Aluminum, anodized
Dimensions (without adapter)	• 64 x 47 x 17.8 mm³
Weight	• < 90 g
Power Supply	• +5 V DC ±5%, ripple ≤20 mV
Power Input	• Detector: 50 mA max • LED:≤150 mA (depending on LED)
Interface	• Serial, 57600 baud, 1 start byte, 8 data bytes, no parity, 1 stop byte
Interface models	• TTL-level (3.3 V/5 V tolerant) • RS232-level
Connectors	• 10 way flex cable; MOLEX; 98267-0249; 76 mm

Connections

Pinout of the connection cable

Pin number / Name	Description
1 / Ground	• Ground return for supply and communication signals
2 / Ground	• Ground return for supply and communication signals
3† / TxD	• Output of the serial interface
4* / #Trigger	• Low active input to trigger a measurement by hardware
5† / RxD	• Input of the serial interface
6 / Ground	• Ground return for supply and communication signals
7* / #Reset	• Detector supply voltage • +5 V DC, ±5%, acceptable ripple < 20 mV • power consumption ≤40 mA
8 / + 5V	• Ground return for supply and communication signals
9 / Ground	• not used
10 / n.a.	• not used

* These inputs do not provide internal pull up resistors. In normal operation they should be tied to +5 V/+3.3 V.
† The levels of the serial interface are with respect to the detector type either ±6 V (RS232), 0/+3.3 V (TTL).

Dimension

Physical dimensions

ESMO40-MB-xxxx Detector Dimensions

Front side optical output

ESMO30-MB-xxxx Detector Dimensions

Downside optical output
